Ansamblu access point / antenă 20 dBi, 2x2 MIMO, 802.11 a/n, TX power 29 dBm (800mW), 1x LAN 10/100, throughput 170 Mbps.
LigoDLB 5-20 este un echipament destinat realizării link-urilor punct la punct sau utilizării ca station pentru abonații aflați la distanță mare de basestation. Acest produs integrează un modul radio de putere și o antenă integrată de câștig mare, cu polarizare duală.
Specificații:
- Standard WiFi: 2x2 MIMO IEEE 802.11 a/n, iPoll (protocol proprietar)
- Banda de frecvență: 5.150 - 5.850 GHz
- Putere de emisie: 29 dBm (800 mW)
- Sensibilitate la recepție: între -97 și -75 dBm (în funcție de modulație)
- Lățime canal radio: 5, 10, 20, 40 MHz
- Moduri de lucru: access point (auto WDS), access point (iPoll 2), station (WDS, iPoll 2), station (ARP NAT)
- Securitate: WPA/WPA2 personal, WPA/WPA2 enterprise, WACL, user isolation
- Protocoale WAN: IP static, client DHCP, client PPPoE

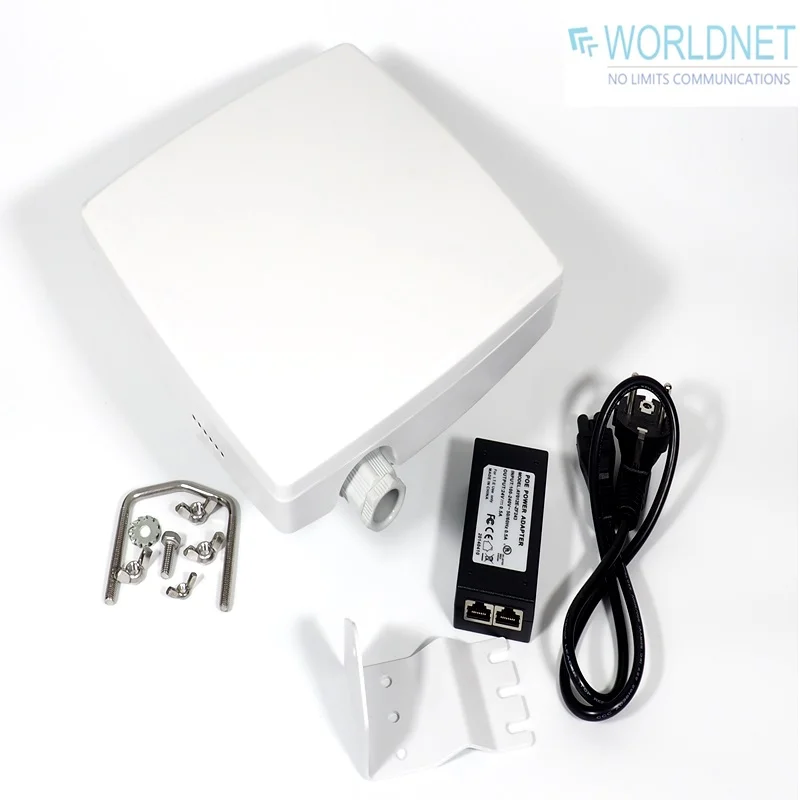

- Alimentare: PoE 12 ... 24V (adaptor PoE de 24V este inclus in kit)
- Putere consumată: 4.5 W
- Dimensiuni: 205 x 205 x 45 mm
- Masă: 700g
- Temperatura de operare: -40°C ... +65°C
- Umiditate: 0 ... 90% (fără condens)
- Certficări: FCC/IC/CE
Highlights:
5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
80,000 PPS
170 Mbps capacity
High output power 29 dBm radio
Integrated dual-polarized 20 dBi directional panel antenna
Powerful OS
Smart polling data transmission protocol (iPoll 2)
Meets IP-66 certification
Free WNMS (WNMS – Wireless Network Management System)
Responsive HTML 5 based GUI
Wall and pole mounting option
New Hardware platform
Powerful new generation CPU ensures better performance delivering higher up to 170 Mbps capacity and almost 2 X higher packet per second rate (80000). Narrow (5 and 10 MHz) channel support ensures steady performance in noisy environments. More RAM improves the performance with multiple users connected to a single base-station and larger flash stores a 2nd failover firmware image.
Integrated surge protection
3 kV line to ground and 1 kV line-to-line protection allows operating in a harsh weather conditions and unstable electrical installations.
New OS
New operating system includes all the essential features for point-to-multipoint networks. User interface is built using HTML 5 technology with responsive design. Among the new features there are IPv6 bridge and router support, SSDP and Bonjour device discovery options, flexible traffic shaping and SSTP client. New generation DLB devices are backwards compatible with APC series from Deliberant even when using iPoll protocol. In order to achieve this a new firmware image has to be installed on all APC devices (v7.0 or later).
iPoll 3 – enhanced performance protocol
LigoWave’s iPoll™ PTMP (Point to Multi-Point) proprietary protocol is an innovative solution to eliminate transmission congestion and close cluster interference created in PTMP wireless installations.
Hotspot scenario support
Starting from v7.52 Infinity firmware image can be used on a LigoDLB series devices for the outdoor hotspot and other related applications. After the firmware upgrade DLB devices are converted into access points for outdoor hotspot networks and will lose the functionality of point-to-point or point-to-multipoint connectivity.
